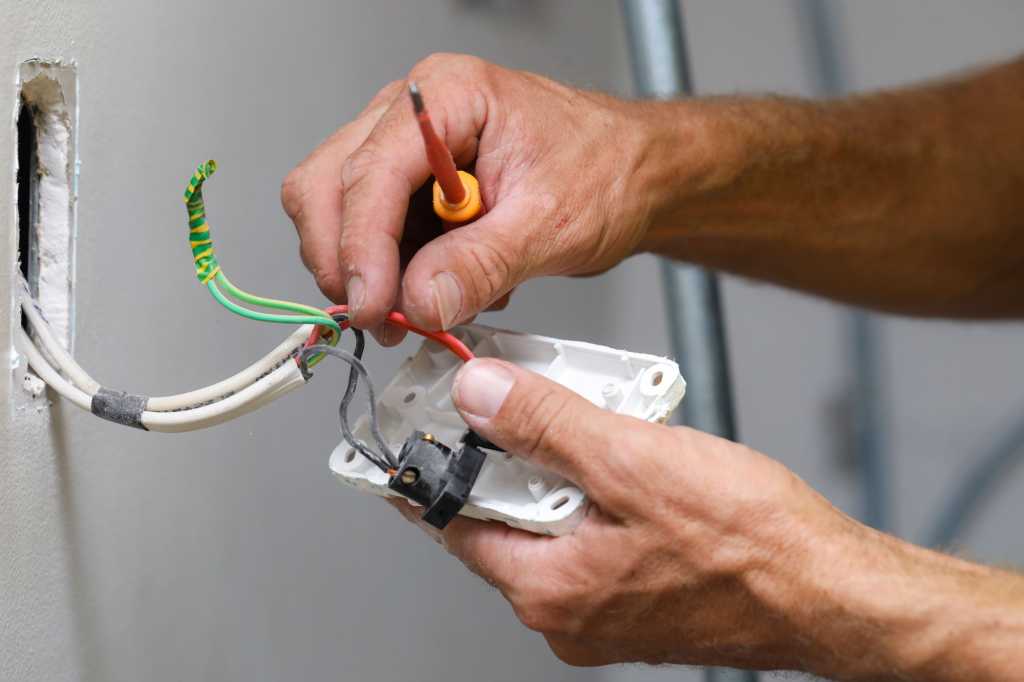

Find out how to set up a sensible mild change or dimmer
There are as many types of good mild switches (and dimmers) as there are mild bulbs, and whereas the prospect of upgrading your outdated dumb change might sound daunting, they’re normally fairly easy to put in.
The job requires no particular instruments, other than a screwdriver (an electrical one is useful) and maybe a pair of pliers. If you wish to be additional secure, choose up a non-contact voltage tester to make sure the wires you’ll be coping with aren’t electrified. You’ll find a name-brand voltage tester on Amazon for lower than $20. Additionally, in case your change is situated in a darkish area, a head-mounted flashlight will also be invaluable.
Bought your gear prepared? Right here’s learn how to get the job executed safely and efficiently.
Earlier than you begin
A reasonable non-contact voltage sensor will let you realize if the wires you’ll be coping with are electrified.
Christopher Null/Foundry
Earlier than you begin this undertaking—and earlier than you even purchase a sensible change—you want to decide what kind of change you’ll be changing. If the change is the one one controlling the sunshine (or outlet) it’s linked to, you will have a easy 1-way or single-pole circuit. If the sunshine will be managed by different switches—at reverse ends of a room, for instance—you will have a 3-way or perhaps a 4-way circuit.
Many good switches don’t work with multi-way implementations, so examine fastidiously before you purchase. And in the event that they do, relying on the model of good change you purchase, you may want to put in a suitable companion change in these secondary areas.
Look at your current change and wiring
Your first step is to show off the ability to the change on the circuit breaker. Even when the change seems to be off, it’s good to make use of a voltage sensor to double examine. (A very good voltage sensor is not going to even want to the touch the wiring to mild up when the road is stay, so that is a simple—and vital—step to take.)
With the ability to the change disabled, take away the duvet plate and unscrew the 2 bolts attaching the change to the receptacle. Be sure you don’t lose the bolts; I wish to maintain my outdated switches with their cowl plates and different {hardware} in a plastic bag, labeled with details about the place the change was. It’s a good suggestion to examine as soon as once more that no energy is flowing by touching the voltage sensor to the wires resulting in the change.
Step one in your set up course of is to show off the circuit breaker linked to the change you’ll be changing.
Christopher Null/Foundry
Now, pull the change out of the field contained in the wall. Family wiring is stiff and onerous to work with, so don’t be shy. After getting the change out from the wall a bit, it is best to be capable to take inventory of the wiring inside. At a minimal you’ll most probably see two black wires linked to the change and a floor wire, which will likely be in all probability naked copper, linked to a inexperienced screw. It’s frequent for wires to be splattered with paint and drywall mud, a lot that they could truly look white or patterned; that is all par for the course.
Behind the receptacle, search for a twisted pair (or extra) of white wires that look like unused and are capped off with a wire nut. These are impartial wires that function a return path to finish the circuit again to the ability supply (your circuit-breaker field). Standard switches don’t want impartial wires, however most good switches do.
Should you don’t see impartial wiring within the field, you’ll want a sensible change that may be put in with out it. This will likely be clearly marked as “no impartial required” on the product itemizing, so store fastidiously. Our information to the finest good dimmers and switches will assist you to on that entrance, and all our critiques can even focus on any impartial wire and companion change necessities.
Don’t be shocked if the wires inside {the electrical} field are painted over or spattered with drywall mud.
Christopher Null/Foundry
The next move is to find out which of these two black wires is the line (the “scorching” wire that connects to the panel and your energy supply) and which is the load (connecting to the sunshine bulb or outlet). When you can guess at this—line wires may go down towards the ground, whereas load wires may go up into the ceiling, the place the sunshine is—there’s no dependable technique to inform simply by trying on the wiring within the field to know what’s what.
The foolproof means is to show the circuit breaker again on, set the change to its off place, after which contact your voltage sensor to every of the black wires. When the voltage sensor lights up, that’s the road wire. If it stays darkish, that’s the load. You may need to mark the wires for future reference; within the photographs, I put some crimson electrical tape across the load wire to match the crimson colour of the load wire on the good change I’m working with.
Are there greater than two black wires within the field? Or a crimson wire? On this case, you’re prone to have a multi-way change. Purple wires are generally used for the “traveler” wires that run from change to change, however that is removed from common as a result of the Nationwide Electrical Code (NEC) solely mandates the colours of impartial wires (white or grey) and grounding wires (inexperienced or inexperienced with a yellow stripe, though grounding wires will also be naked copper).
In actual fact, most switches I’ve labored with use black wires for traveler wires, too. This may increasingly effectively complicate your set up—and might in the end require slightly trial and error in complicated multi-way installations to get the whole lot working correctly.
Now that each one your wiring is recognized, flip the ability again off on the breaker. Double examine that it’s off and prepare for the subsequent step.
Take away the present change
Professional tip: Take a photograph of the setup earlier than you begin disassembling issues, simply in case your good change doesn’t work and also you want put the whole lot again to the way in which it was earlier than you began your undertaking.
Should you uncover that each the road and cargo wires are black, it’s a good suggestion to label one or the opposite so that you don’t must guess. I caught a chunk of crimson tape on the load wire right here to match the load wire on the good dimmer I used to be putting in.
Christopher Null/Foundry
However this ought to be the simple half. Simply loosen any screws connecting the wires to the change, after which take away the change completely from the boxx. Once more, maintain observe of that are the road and cargo wires. Impartial and floor ought to be self-explanatory.
Set up the brand new change
An ordinary single-pole good change would require you to make 4 connections: line, load, impartial, and floor. Completely different good switches, nevertheless, use totally different connection programs. Some use screwpost terminals much like what you’ll see on a dumb change, some use push-in connectors the place the wire slides right into a small gap (also referred to as backstabs), and a few use pigtails that connect to your family wiring with wire nuts. Nonetheless others use varied combos of those three strategies on the identical machine, with each screws and pigtails, for instance.
Most good change {hardware} is effectively labeled as to which wire or screwpost goes to which wire in your receptacle, however you can too confer with the wiring diagram that usually comes with the change to double-check that you’ve got all of it proper.
Chances are high you’ll must make at the very least just a few pigtail connections, and wire nuts will likely be included within the bundle if so.
Professional tip: Included wire nuts don’t at all times match, particularly when coping with a fats bundle of impartial wires, so I maintain a container of wire nuts of varied sizes readily available so I can experiment to seek out the best measurement wire nut for every connection, making certain it’s cosy.
Connecting wire nuts is straightforward however requires slightly persistence. First, ensure that the naked ends of the wires contained in the field are all straight; use needle-nose pliers to straighten them out if wanted. If the good change you’re putting in has stranded wires, twist the strands collectively tightly so none are protruding.
The wire coming from the field will in all probability be strong copper, however the change you’re putting in may use stranded wire. Twist the strands collectively after which twist them round th strong wire earlier than securing them with a wire nut.
Christopher Null/Foundry
Subsequent, bundle up all of the wires you’re connecting to a single nut, slip the wire nut over the ends of the wires, then tighten the wire nut by turning clockwise till you possibly can’t flip it any additional.
You shouldn’t see any uncovered wire (apart from the bottom wire) protruding from the again of the wire nut. Take a look at the connection by pulling firmly on every of the wires to make sure they don’t come unfastened. A single unfastened nut will trigger the entire change to fail, and it’s the commonest purpose why your good change gained’t work while you end the set up.
Be sure that all of your wiring connections are tightly secured with wire nuts. You may want to make use of a bigger wire nut than what got here together with your change if there are greater than a few impartial wires contained in the field.
Christopher Null/Foundry
Pay particular consideration to impartial wiring, as that is usually probably the most tough connection to make efficiently, since you’ll normally have three or 4 wires going right into a single wire nut. That stated, the method is similar: Bundle up all of the wires, twist on the nut (attempt a bigger one if mandatory), and yank on them to make sure they’re all safe.
Push the whole lot into place
The toughest a part of putting in a sensible change comes subsequent: Getting the change into the field. Sensible switches are notoriously giant compared to dumb ones, as a result of they’ve so many digital parts inside that dumb switches don’t. When mixed with all the additional wire nuts, they are often very tough to wedge again into the field and get them flush with the wall.
The very best tactic I’ve discovered is to bend the wires in half, which turns the wire nuts round in order that they’re going through the wall, then push every of them into the receptacle, way back to they’ll go. Begin with the impartial wire, then the bottom, then the road and cargo wires. Don’t be afraid to bend the wires in a number of locations and push onerous to get them cosy in opposition to the again of the receptacle—a screwdriver deal with will help with this. You may as well use needle-nose pliers to assist bend the wires additional if the area is difficult to work in.
Stuffing all of the wires again into the field generally is a problem when putting in a sensible change, as a result of it’ll invariably be bigger than the one you’re changing.
Christopher Null/Foundry
With the wires in place, connect the change to the receptacle utilizing the 2 bolts, which ought to be pre-attached. Don’t be alarmed if area is tight; the bottom of the change will push the wires in the previous couple of millimeters because it retreats into the receptacle. Be sure that the change is vertically plumb (i.e., straight up and down), and that each one sides of the change are flush with the wall.
Many switches are inclined to record to at least one aspect when they’re hooked up to the receptacle as a result of wiring behind them, which might depart you with an unattractive completed product. If this occurs to you, again the 2 bolts out and rearrange the wiring behind the change. This generally is a bit tedious nevertheless it’s value it to make the completed set up extra enticing.
Be sure that the newly put in change is plumb and flush with the wall prior to installing its cowl plate.
Christopher Null/Foundry
At this level, I like to show the ability again on and ensure the change is working. Whether it is, the hooked up mild will illuminate usually, even earlier than you configure the change with its cell app. If it doesn’t work, one in all your wire nuts has in all probability come unfastened—otherwise you linked the wires flawed. Flip the ability again off and begin over.
End up
Many good switches include a canopy plate, but when yours didn’t you may must buy one in case your outdated plate not matches (resembling in case you are changing a toggle change, as most good switches use a paddle design). Don’t use a metallic cowl plate with a sensible change; it could block the radio alerts it makes use of to speak together with your router (Wi-Fi fashions) or good residence hub (Thread, Zigbee, Z-Wave, or proprietary fashions).
The final step is to enroll the change with the producer’s app or together with your favourite good residence ecosystem if, say, you will have a Matter-compatible change. Notice that many switches have a QR code printed on the change {hardware} to be used throughout this course of, so that you may want to finish this step earlier than you place the duvet plate on. Test the set up information to make certain.
Troubleshooting
A newly put in Leviton Decora Wi-Fi Movement Sensing Sensible Dimmer (mannequin D2MSD).
Christopher Null/Foundry
Is the change not working proper? The offender is normally a wire nut that got here unfastened whilst you have been making an attempt to jam the whole lot again into the field. If all of the connections look intact, examine that you simply didn’t combine up the load and line wires—or join one in all them to a traveler wire by mistake.
Should you suspect that is the case, use a voltage meter to ensure you have the road wire appropriately recognized, then swap the load and traveler wires to see if that fixes the problem. Both means, examine all of your wire nuts obsessively to make sure they’re as tight as attainable.
Above all: Hold checking that the ability is off any time you’re working with wiring. Electrical shocks aren’t any picnic.
